中空玻璃生产线要注意哪些说明?

时间:2023-09-07 来源:http://www.jncsjx.com/ 发布人:昌盛机械

中空玻璃生产线主要有四段:入料段、清洗干燥段、检查段和合片段。四段均以相同的倾角立式安放,结构紧凑、经济实用、效率高、维护方便。清洗箱为不锈钢材料制造,传送辊为耐酸碱橡胶辊;通过有机玻璃视窗可随时方便地观察玻璃清洗情况;入料段、清洗干燥段采用手动无级调速电机传动,玻璃以佳的速度平稳地运行。
The insulating glass production line mainly consists of four sections: feeding section, cleaning and drying section, inspection section, and assembly section. All four sections are placed vertically at the same inclination angle, with a compact structure, economic practicality, high efficiency, and easy maintenance. The cleaning box is made of stainless steel material, and the conveyor roller is acid and alkali resistant rubber roller; Through the organic glass window, it is easy to observe the glass cleaning situation at any time; The feeding section and cleaning and drying section are driven by manual stepless speed control motors, and the glass runs smoothly at the best speed.
干燥段采用大风力倾斜风刀能使玻璃表面得以干燥。检查段设有灯管,能清晰地检查玻璃的清洗质量;合片段具有玻璃定位及铝框定位装置,能完成玻璃定位、铝框定位安放功能。玻璃由传送胶辊承托及传送,传送辊由电机(辊压段电机)经过变频调速器通过链轮带动,玻璃由清洗干燥段低速进入本段,经检查合格后加速运行至下一工作段,提高工作效率;由变频调速器控制本段调速电机的运行速度,光电开关控制玻璃进入下一工作段。
The drying section uses a high wind force inclined blade to dry the glass surface. The inspection section is equipped with a light tube, which can clearly check the cleaning quality of the glass; The composite segment has glass positioning and aluminum frame positioning devices, which can complete the functions of glass positioning and aluminum frame positioning placement. The glass is supported and transported by a conveyor roller, which is driven by a motor (roller pressing section motor) through a frequency converter and a sprocket. The glass enters this section at low speed from the cleaning and drying section, and after passing the inspection, accelerates to the next working section to improve work efficiency; The operating speed of the speed regulating motor in this section is controlled by a frequency converter, and the photoelectric switch controls the glass to enter the next working section.

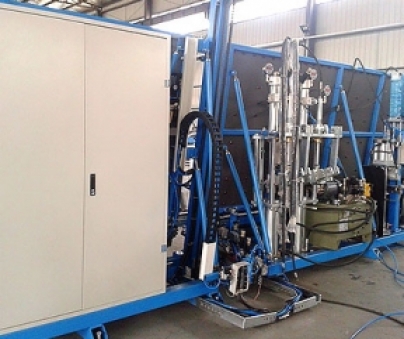

中空玻璃加工设备
中空玻璃生产线的清洗水路系统为循环系统,其水箱配有恒温水加热装置,水温可自动保持在合理的范围。
The cleaning water system of the insulating glass production line is a circulating system, and its water tank is equipped with a constant temperature water heating device, which can automatically maintain the water temperature within a reasonable range.
水由水泵从水箱抽出,经喷淋水管喷到玻璃表面上,清洗玻璃后流回水箱,循环使用。若水质较差,需配备水处理装置(用户自备),水经处理后进入水箱,按上述步骤循环使用。
Water is pumped out of the water tank by a water pump and sprayed onto the surface of the glass through a spray pipe. After cleaning the glass, it flows back to the water tank for recycling. If the water quality is poor, a water treatment device (provided by the user) needs to be equipped. After the water is treated, it enters the water tank and is recycled according to the above steps.
风路系统:由风机通过一对倾斜风刀,吹干玻璃。
Air duct system: The glass is blown dry by a fan through a pair of inclined blades.
总而言之,中空玻璃生产线主要分为四段,每段分工明确,搭配合理。
In summary, the insulating glass production line is mainly divided into four sections, each with a clear division of labor and a reasonable combination.
本文由中空玻璃加工设备提供技术支持,更多的详细精彩内容请点击我们的网站http://www.jncsjx.com ,我们将会全心全意为您提供满意的服务。
This article provides technical support from insulating glass processing equipment. For more detailed and exciting content, please click on our website http://www.jncsjx.com We will wholeheartedly provide you with satisfactory service.
