铝条丁基胶涂布机主要性能特点
Main performance characteristics of aluminum strip butyl adhesive coater
1、丁基胶涂布机为中空玻璃出产的首要必备设备，为半主动胶条涂布机，即人工持铝距离框进行操作，将铝距离框放在传送带上，人工持铝距离框随传送带运行，当铝距离框经过传感器时，传送压轮及打胶阀将按设定程序主动运行，即气缸动作，压轮压下，压送铝距离框进行;待铝距离框抵达打胶头时开端打胶，将胶均匀地涂在铝距离框上，当距离框另一侧快要抵达压轮时，压轮抬起，离开打胶头时，胶阀主动停止打胶。
1. Butyl adhesive coating machine is the primary and necessary equipment for the production of insulating glass. It is a semi-active adhesive strip coating machine, that is, manually holding the aluminum distance frame for operation, placing the aluminum distance frame on the conveyor belt, and manually holding the aluminum distance frame runs with the conveyor belt. When the aluminum distance frame passes through the sensor, the transmission roller and glue valve will actively operate according to the set procedure, that is, the cylinder acts, the roller is pressed down, and the aluminum distance frame is pressed; Start gluing when the aluminum distance frame reaches the gluing head, and apply the glue evenly on the aluminum distance frame. When the other side of the distance frame is about to reach the pressing wheel, the pressing wheel is raised, and when it leaves the gluing head, the glue valve actively stops gluing.
2、选用人机界面显示屏便于操作，体系以PLC为操控中心，由光电传感PLC机、中文操控终端、PLC主动转换。按钮开关等电器元件组成，功用强大、作业牢靠、操作简单主动化程度较高。
2. The man-machine interface display screen is selected for easy operation. The system takes PLC as the control center and is actively converted by photoelectric sensor PLC machine, Chinese control terminal and PLC. It is composed of button switch and other electrical components, with strong function, reliable operation, simple operation and high degree of automation.
3、铝条丁基胶涂布机选用目前国内较大缸径?195胶缸，装胶容量大，较大极限确保连续出产时刻，进步作业效率。选用较气动增压体系，充沛确保胶头出胶压力衡定，避免了打胶粗细不匀，断胶现象。选用4段变频调速，较大极限照料操作工人熟练程度，进步作业效率。
3. Aluminum strip butyl adhesive coating machine adopts the current domestic large cylinder diameter? 195 rubber cylinder, with large rubber loading capacity and large limit, ensures continuous production time and improves operation efficiency. The more advanced pneumatic pressurization system is selected to fully ensure that the glue outlet pressure of the glue head is constant, avoiding uneven glue thickness and glue breaking. 4-stage variable frequency speed regulation is selected to greatly limit the proficiency of operators and improve operation efficiency.

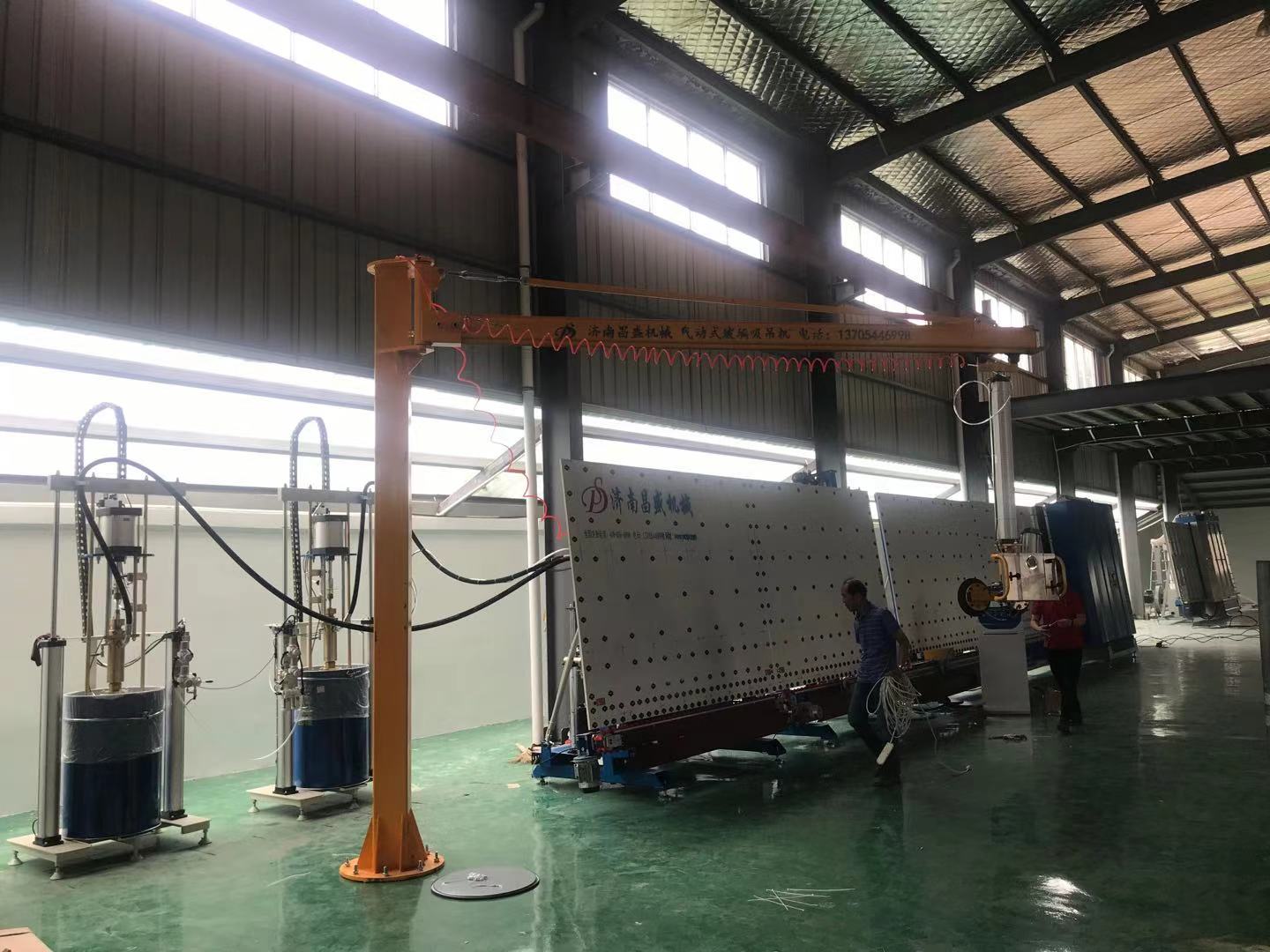

http://www.jncsjx.com/uploadfile/2022/07/07/1657166553123048.jpg
4、铝条丁基胶涂布机主要功能有：
4. The main functions of aluminum strip butyl adhesive coater are:
1恣意设置主动加热时刻;
1. Arbitrarily set the active heating time;
2无胶报警提示;
2. No glue alarm prompt;
3胶头、胶缸主动加热功用;
3. Active heating function of rubber head and rubber cylinder;
4主动待机功用：减少工人值守时刻，进步作业效率;
4. Active standby function: reduce workers' duty hours and improve operation efficiency;
5在手动状态下可打圆弧。
5 arc can be made in manual mode.
5、选用不锈钢作业台面，充沛确保设备外观及整理方便。
5. Stainless steel worktop is selected to fully ensure the appearance of the equipment and convenient sorting.
以上就是卧式丁基胶涂布机为大家介绍的内容，感谢您在百忙之中查看我公司的信息内容，如果您想要了解的更多，欢迎您来电进行咨询!http://www.jncsjx.com
The above is what the horizontal butyl adhesive coater introduces to you. Thank you for checking the information of our company in your busy schedule. If you want to know more, you are welcome to call for consultation! http://www.jncsjx.com
